MT BULLION      440.8375 + (Narrow Band 12.5 KHz)   PL 114.8    NAC 29A

March 2019: The Bullion Repeater is LINKED to the system, making it site number 7.

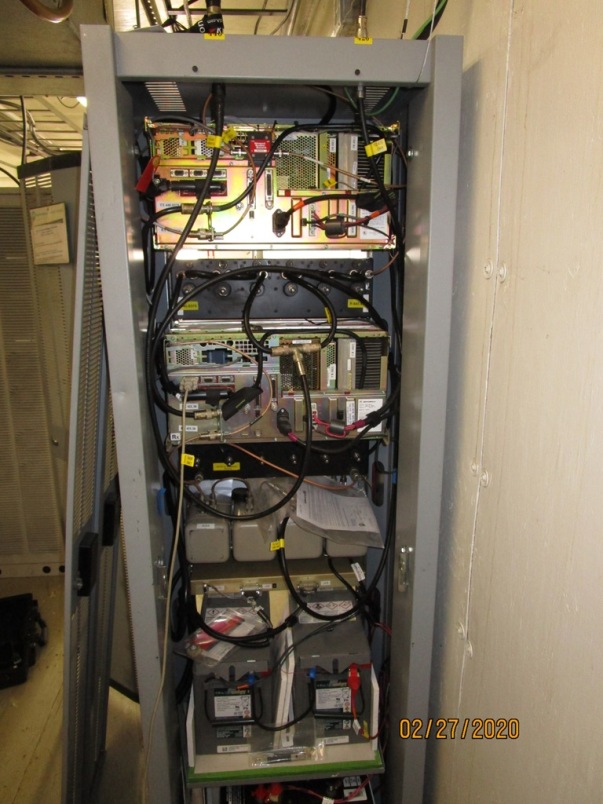

Both Repeater and Link are Motorola Quantar Models keeping the repeaters an all RF linked system.

This Analog FM Narrow Band 12.5khz and P25 audio linked repeater has excellent portable coverage from Ripon to Fresno in the San Joaquin Valley.

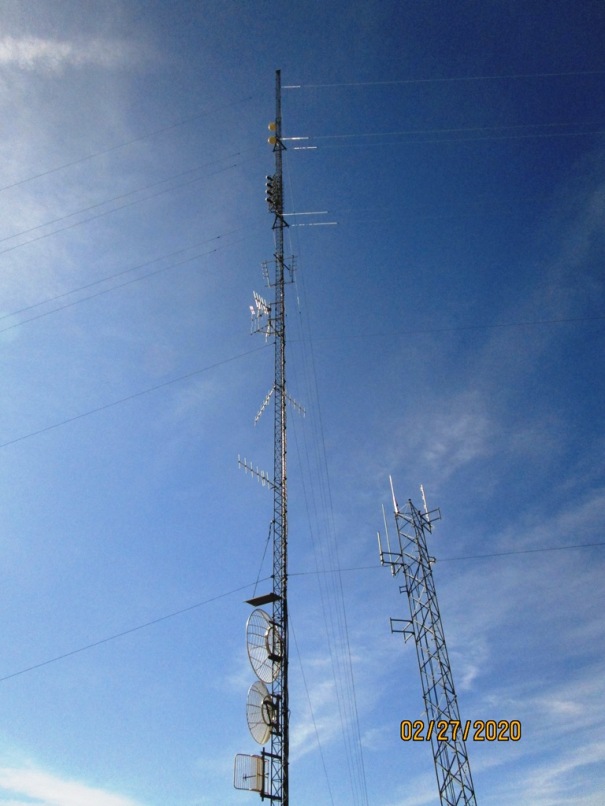

NEWS: Installed New Duel 4pole Sinclair dipoles in Summer 2020. One facing East up the Merced River Drainage towards Yosemite National Park. The other facing West into the San Joaquin Valley, affording 360 degrees of pattern. In Spring of 2019 the battery backup was reworked to increase the storage to 900 amp hours.

NEWS 2024: New Telewave 6 bottle duplexers replaced both 30+ year old celwave duplexers.

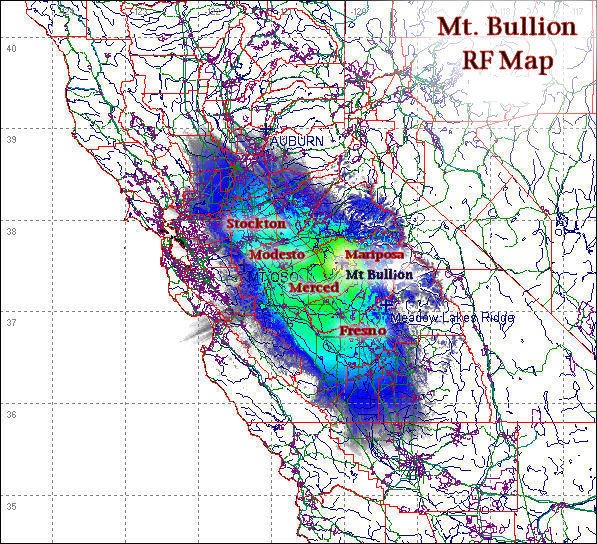

bullion coverage2

© N6LYE March 2024
